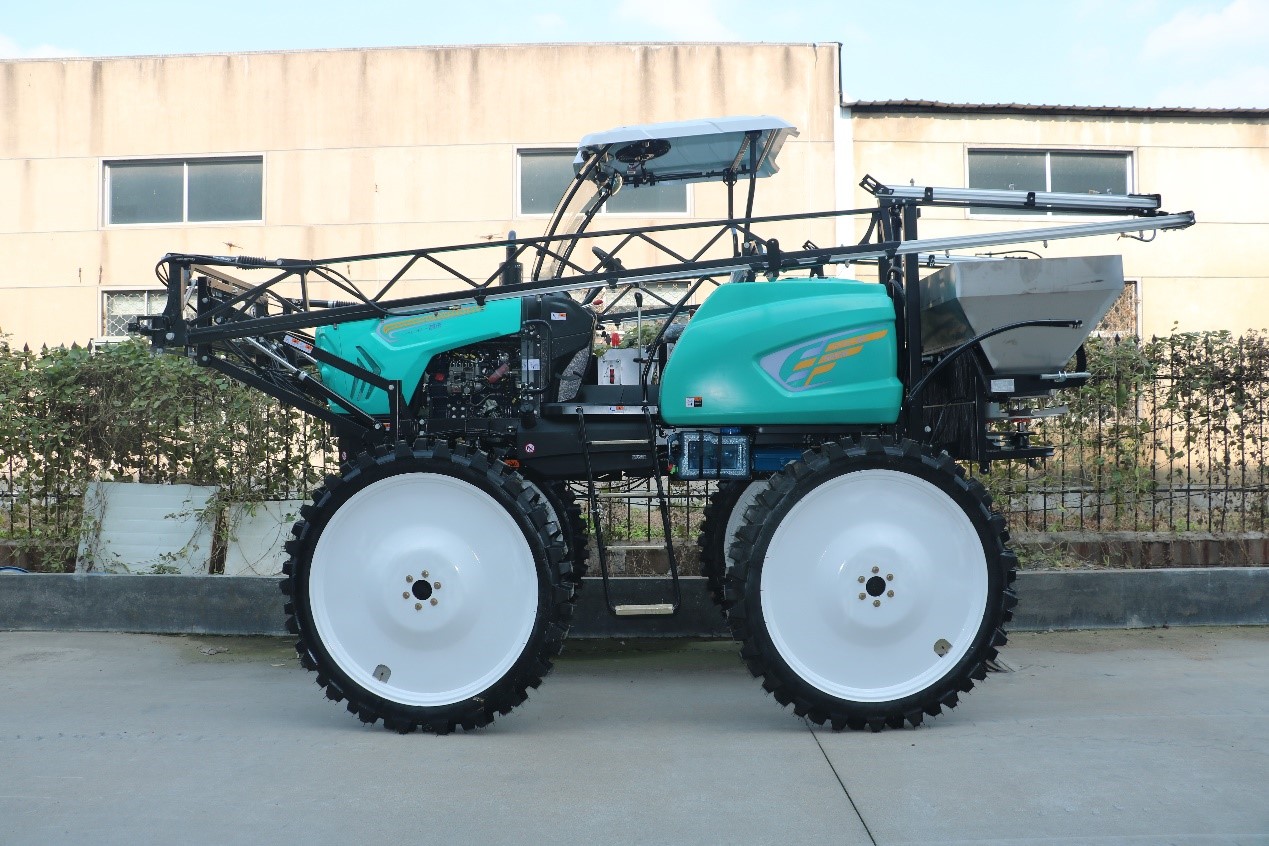

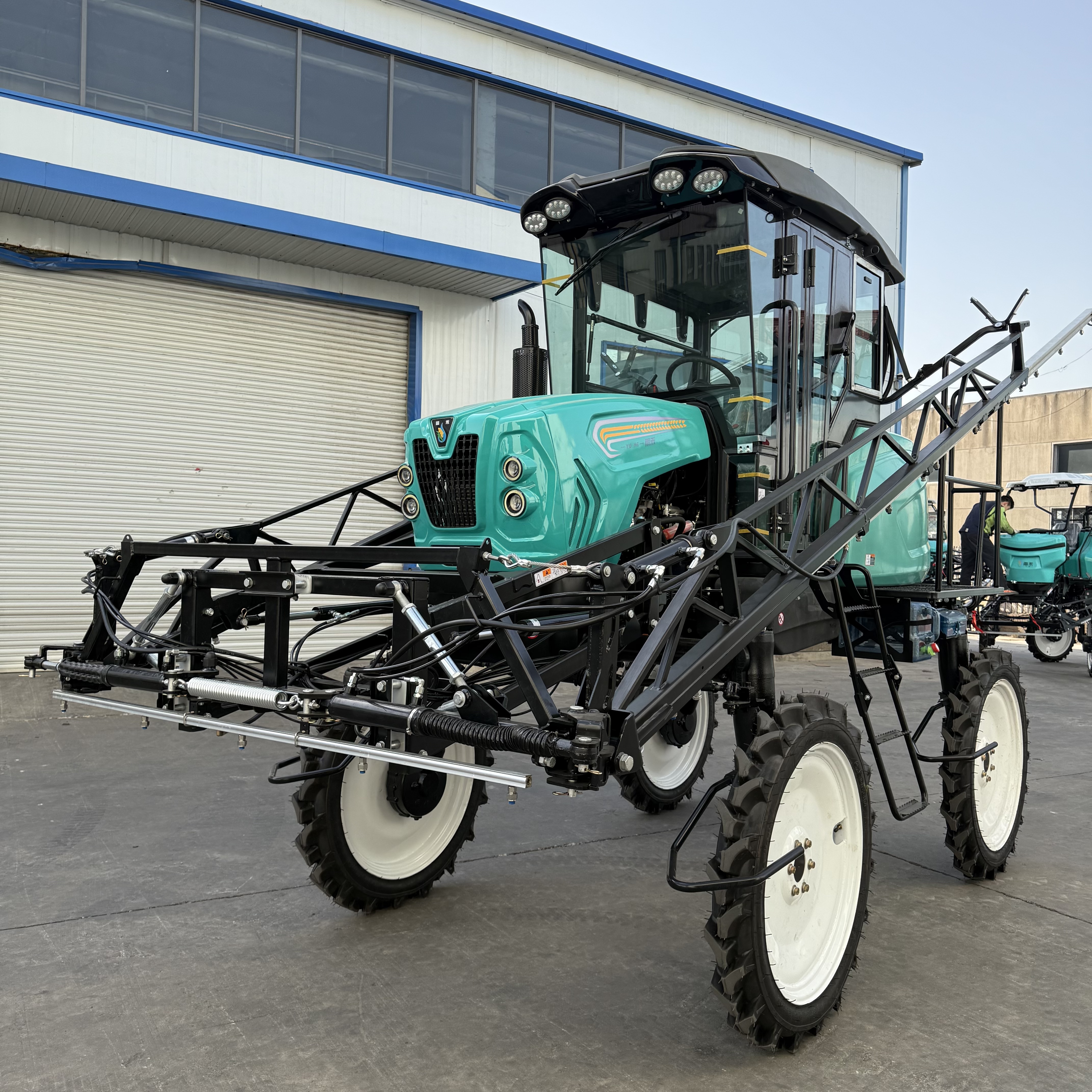

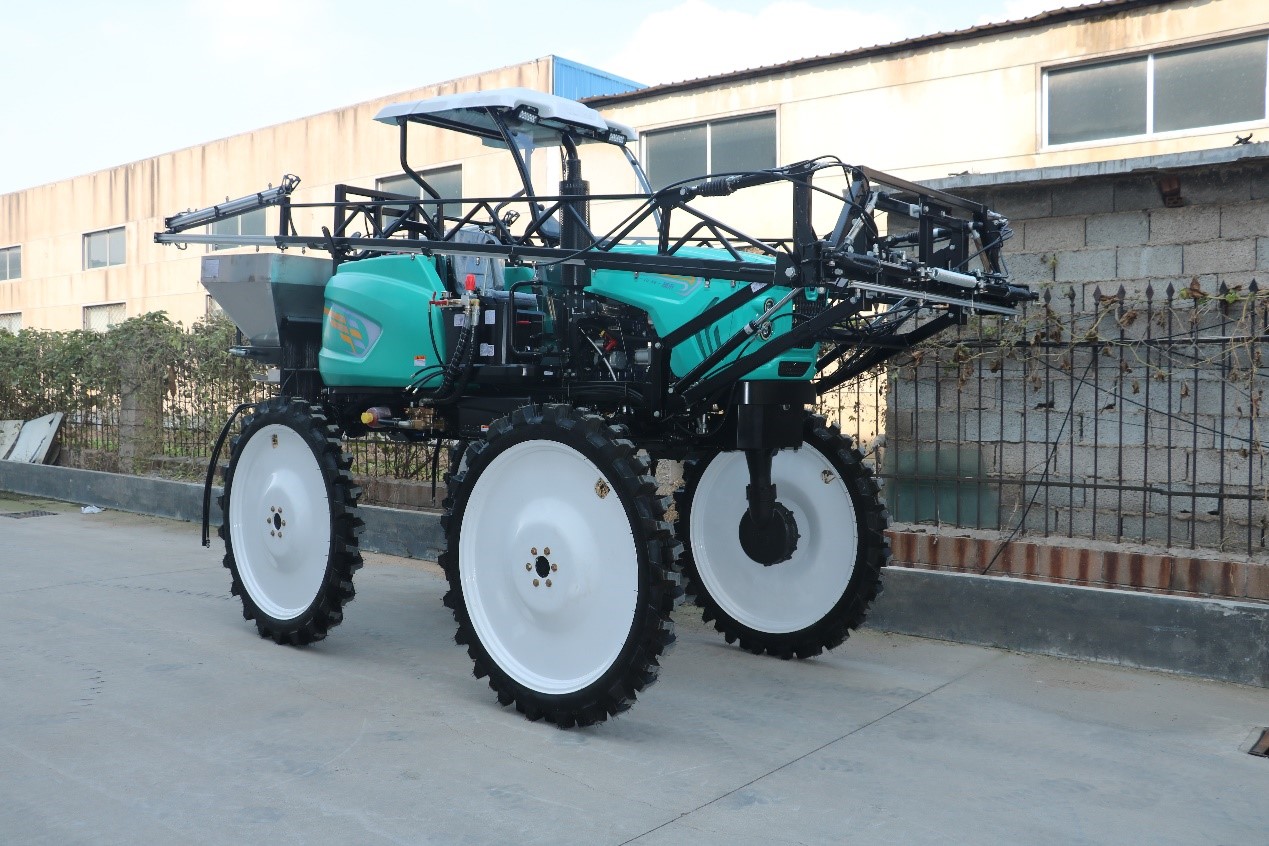

3WPZ-800 Self-propelled sprayer introduce
This 3WPZ-800 self-propelled boom sprayer is mainly used for the whole process of disease, insect and grass damage of rice, wheat, cotton, soybean, peanut and other medium and dwarf crops, and can also be used for the middle and early stage of high stalk crops such as corn, sorghum, sunflower and sugarcane. It can also be used for large-scale soil treatment before sowing and weeding, and spraying operation for prevention and control of diseases, pests and grasses in seedling stage, such as Chinese herbs, herbage, garden flowers, vegetables, melons and fruits. It is increasingly widely applied in agricultural sprayers.
The boom sprayer can achieve two functions of spraying and spreading fertilizer, Spray pesticides width of 16 meters is consistent with the spread fertilizer of 16 meters.
Introduction of main features and advantages of self propelled sprayer
The self propelled sprayer front face, hood, ceiling, instrument panel, apron, medicine box and other appearance covering parts are designed and made with new moulds, streamline shape, the whole machine appearance is beautiful and reasonable layout. The safety design of the product is carefully made a holistic layout, integrated design, ergonomic principle, the frame adopts splitter design, making the medicine box center of gravity sinking lower, the product dynamic center of gravity layout is more reasonable, more stable and safer
The Angle of the left and right spray rod is used to adjust the cylinder, and the height of the end spray rod can be adjusted at any time on the slope or uneven field, which can avoid scratching crops or hurting the spray rod when the two ends of the spray rod are uneven. On the other hand, the Angle cylinder plays a role of cushioning and damping the spray rod system when the field is relatively bumpy, while the steel wire rope is a structure of rigid connection, which is easy to break for a long time. In addition, using the Angle cylinder to lift the spray rod on the car side, the space is larger, which can facilitate the driver to get on and off the car
This self propelled sprayer adopt 50 horsepower full diesel four-cylinder water-cooled engine with constant current pump and gear pump, double pump configuration structure; The front constant current pump is specially responsible for steering, steering feedback is sensitive, steering is accurate, and the control is light and easy, eliminating the safety hazards of complex road conditions, and driving safety is higher; The rear gear pump is responsible for the hydraulic control of the spray rod system, which belongs to the dual-core dual-heart configuration, reducing the hydraulic oil temperature and greatly reducing the failure rate of the machine.
The newly designed 50-liter super-large fuel tank can meet the long-term operation needs of 10-12 hours a day when filled with diesel oil ; The oil suction device on the top of the fuel tank is similar to that of the high-end tractor, which avoids the hidden danger of oil seepage and oil leakage in the oil inlet and outlet; The fuel tank is equipped with a sensor, the fuel level display can be clearly seen in the dashboard, and the automatic alarm will remind the user to replenish the fuel in time when the fuel is low;
With the use of enlarged and thickened cooling water tank, the heat dissipation efficiency is higher, and the high temperature phenomenon will not occur even in the continuous operation of complex paddy fields; The front of the water tank comes with a dust screen cover, which is equal to adding a barrier to the heat dissipation water tank to prevent flying insects and debris in the flowering period of crops enters the cooling water tank causing obstruction, which is more convenient to clean the debris and ensure the heat dissipation effect of the water tank.
YUHE self propelled boom sprayer dopted the 6th generation of enhanced drive axle (drive axle free warranty for 2 years), high strength, the traditional shaft sleeve structure is replaced by double bearing structure in the steering part. The bearing structure is flexible, lightweight, reliable and durable; It solves a series of other faults caused by excessive clearance after the wear of the old copper sleeve and the skimping of the bridge leg.
With a new autonomous special design gearbox, the shift is very smooth like driving a car, and the shift is easy and fast, solving the problem of difficult to hang the gear and shift the parking.
The boom sprayer frame, spray rod system using alloy manganese steel welding, high strength, corrosion resistance, even after long-term seeding fertilizer, frame and other metal parts will not appear layers of corrosion off the problem, to avoid the cheap products of the kind of bad, rotten drawbacks;
The design of large-capacity PE material 800L medicine box is more reasonable with 12m or 15m spray rod; The backwater on the right side of the medicine box and the separate jet stirring function on the left side form a backflow hedging state, so that the pesticide in the medicine box is mixed more evenly, ensuring the consistency of the spray droplet concentration, and improving the utilization rate of pesticides and the control effect.

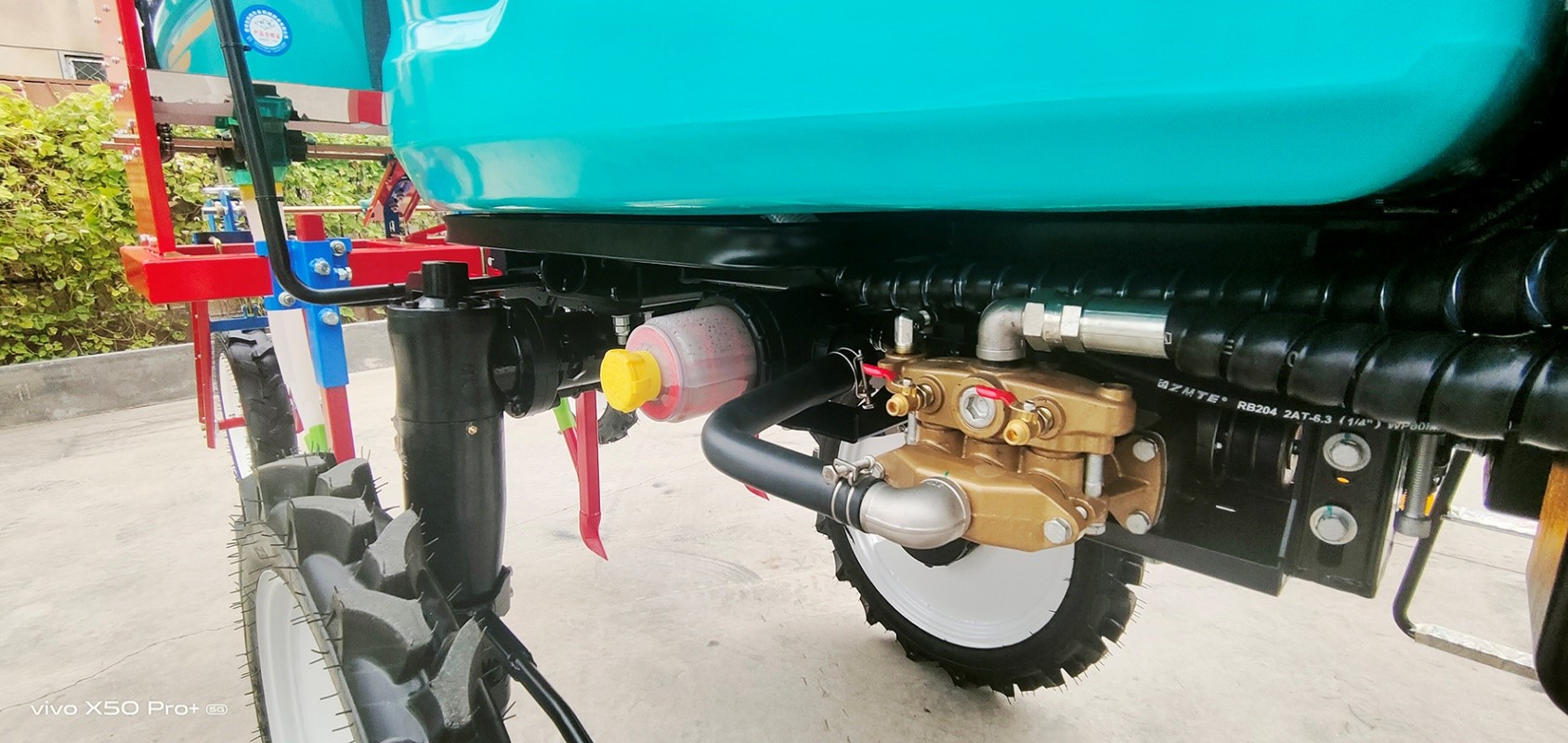

Our self propelled boom sprayer using Taiwan quality HS Haishun three-cylinder plunger injection pump, the drug pump is stable and easy to maintain, avoiding the drawbacks of diaphragm pump frequently replacing the diaphragm; The plunger pump has high pressure, good atomization, strong penetration and better spray control effect.
Self propelled boom sprayer angle adjustment cylinder on both sides of the left and right spray rod:
On slopes or uneven fields, the height of the end spray rod can be adjusted at any time to avoid the uneven end of the spray rod and scratch crops or damage the spray rod
The Angle cylinder plays a role of cushioning and damping the spray rod system when the field is relatively bumpy, while the steel wire rope is a structure of rigid connection, which is easy to break for a long time.
The Angle cylinder can be used to lift the spray rod on the car side, which has more space and can facilitate the driver to get on and off the car;

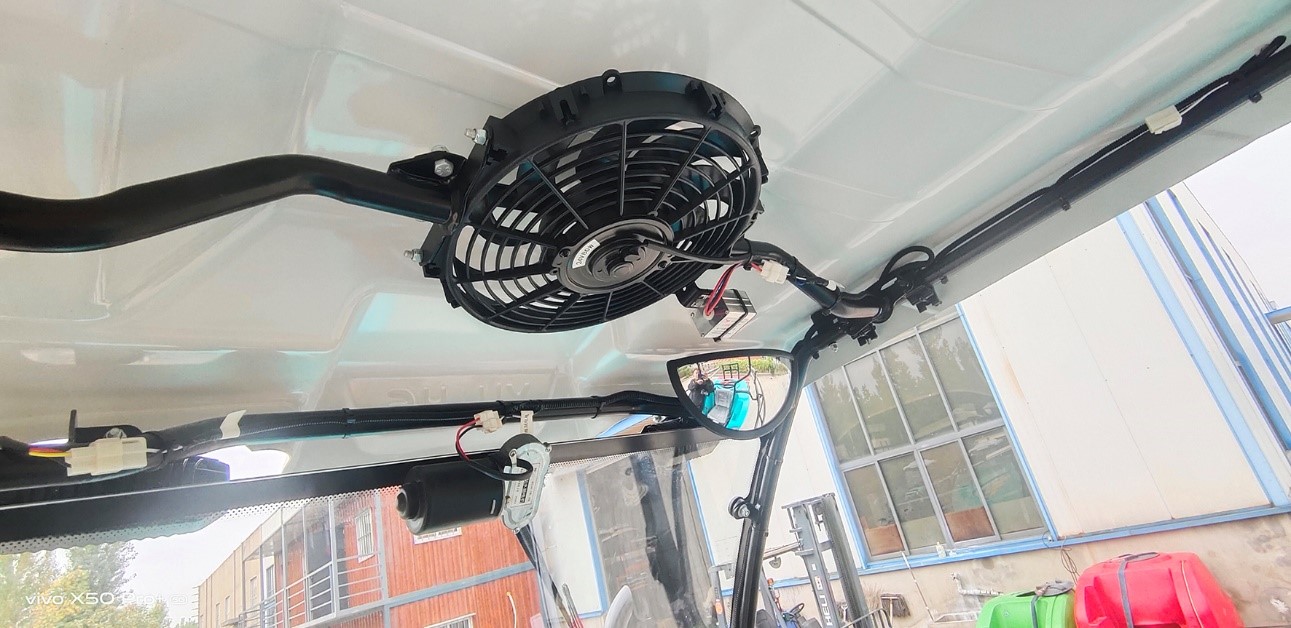

The top adopts large air volume adjustable speed air conditioning fan:
High temperature weather cooling effect is very obvious, summer medicine is no longer hot;
It can sink and blow the pesticide droplets floating to the driver's side, so that the driver is protected from pesticide, and ensure the safety of the applicator.
Use larger LG85 filter, good quality, better filtering effect;
