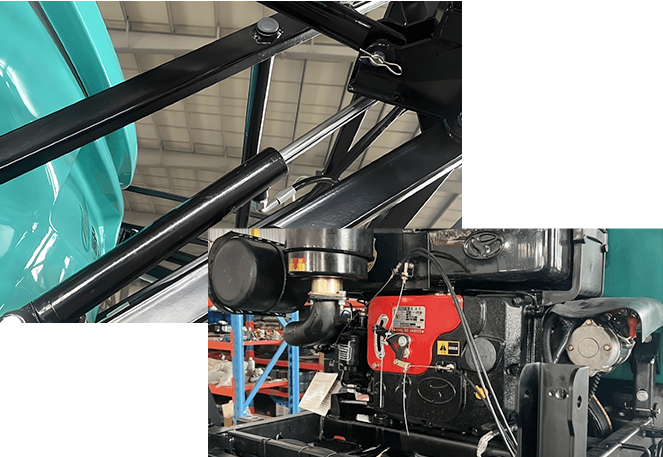

The engine power, tank volume, axle track, tire diameter, spray rod length, nozzle switch, nozzle form and many other aspects can be customized according to the user's field condition, field area, row spacing, plant spacing, ridge spacing, crop height, and spray pairs.
The engine power can be determined based on the muddy condition of the field and the field area: 20 horsepower, 25 horsepower, 50 horsepower, 100 horsepower, and 120 horsepower.
The volume of the medicine tank can be selected based on the area of the field to be worked: 600L, 800L, 1000L, 1400L, 2000L, and 3600L.
The wheelbase of the axle can be determined based on the plant spacing, row spacing, and ridge spacing: 1.3M fixed axle, 1.5M fixed axle, 1.6M fixed axle, 1.8M fixed axle, 2.0M fixed axle; 1.3-1.5M adjustable axle, 1.5-1.8M adjustable axle, 1.8-2.1M adjustable axle; 1.06M standard clearance axle, low clearance short axle, and high clearance axle.
Based on the muddy condition of the field and the distance between fields, you can choose: solid water field wheels or pneumatic wheels; the diameter of the tires can be selected as 0.9M, 1.00M, 1.10M, and 1.2M.
The length of the boom or the spray width (0.5M is the distance between nozzles) can be selected based on the spraying area: 6M, 9M, 12M, 15M, 20M, and 25M.
Based on the plant spacing, spray width, and the part of the crop to be sprayed, you can choose the nozzle switch: all nozzles open, individual nozzle switch, left, middle, and right boom switch, and overhead spray.
Based on the type of pesticide being sprayed, you can choose: fan-shaped, conical, multi-head nozzles, external water passage nozzles, internal water passage nozzles, and single switch nozzles.
The VI standard and LOG of the machine can also be customized according to customer requirements.
Case

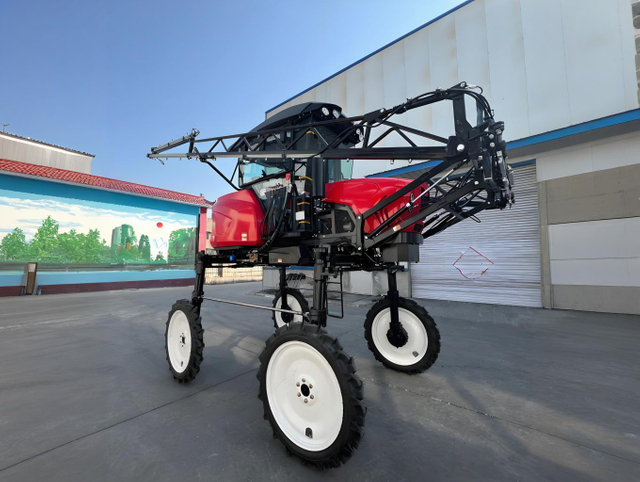

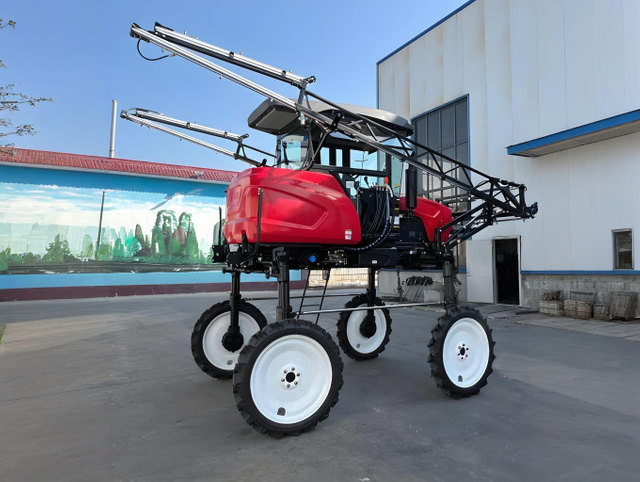

This is a custom-made self-propelled sprayer. According to the customer's requirement for spraying the cornfield, we raised the bridge legs of the 3WPZ-1000 model to increase the ground clearance and the distance between the wheelbases. In addition, replace the original cockpit with an air-conditioned one. According to the customer's requirements, the overall color of the machine is mainly red and black.

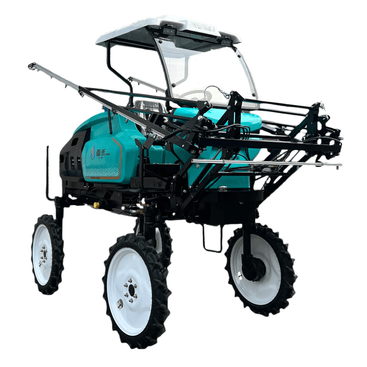

The 3WPZ-600 self-propelled sprayer is equipped with a 20-horsepower single-cylinder diesel engine. It has a medicine tank capacity of 600L, a chassis ground clearance of 940mm, a hydraulic fan-shaped three-fold spray rod, a spray pair of 10m, four-wheel drive, four-wheel steering, and a fixed track width of 1540mm. It is mainly used for the spraying of liquid medicine for the prevention and control of diseases, pests and weeds in food crops, vegetables and other crops. Centrifugal fertilizer sprayers can also be optionally installed for the spraying of granular fertilizers.

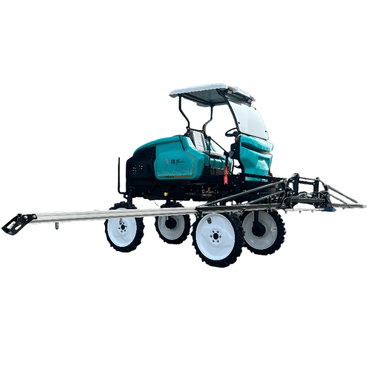

3WPZ-600D self-propelled sprayer, equipped with a 25-horsepower single-cylinder diesel engine, has a medicine tank capacity of 600L and a chassis ground clearance of 940mm. The spray rod is hydraulically lifted and folded. The spray rod is 9 meters long and the spray pair is 10 meters long. Pneumatic tires. Four-wheel drive, four-wheel steering, fixed track: 1300, 1540mm or adjustable track: 1500-1800mm. It is mainly used for the spraying of liquid medicine for the prevention and control of diseases, pests and weeds of crops such as grains and vegetables in the early stage. It can also be used for the scattering of fertilizers.

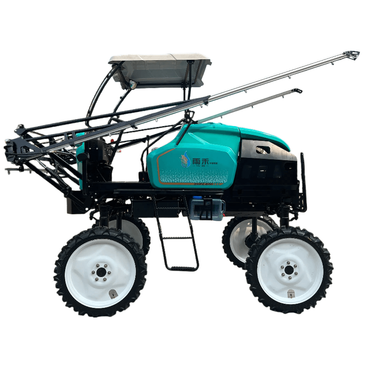

3WPZ-600A self-propelled sprayer, equipped with a 20-horsepower single-cylinder diesel engine, has a medicine tank capacity of 600L and a chassis ground clearance of 940mm. Three-section hydraulic folding spray rod (left and right spray rods folded front and back), spray pair 10m; Four-wheel drive, four-wheel steering, fixed track 1540mm. It is mainly used for the spraying of liquid medicine for the prevention and control of diseases, pests and weeds in the early stage of wheat, rice, corn, vegetables and other crops. It can also be used in conjunction with a centrifugal single-disc fertilizer sprayer for the dissemination of fertilizers.

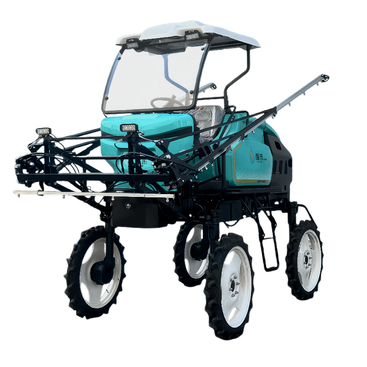

The 3WPZ-600E self-propelled sprayer is equipped with a 25-horsepower single-cylinder diesel engine and has a 600-liter tank capacity. It features an independently developed ultra-low-profile axle with a ground clearance of mm, providing an ultra-low ground clearance. It is four-wheel drive and four-wheel steering, with a fixed wheelbase of 1300 or 1540mm. It is mainly used for spraying pesticides, herbicides and fungicides on grain crops, vegetables, fruits and other crops on hilly and uneven terrain. It can also be equipped with a single-disk fertilizer spreader for fertilizer spraying.

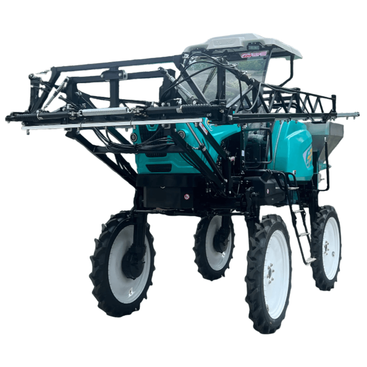

The 3WPZ-800A self-propelled sprayer is equipped with a 36.8KW (50 horsepower) diesel engine. 940mm*120mm pneumatic rubber tire, 1.56m track, 0.96m ground clearance; Four-wheel drive, four-wheel steering; The medicine box has a volume of 800 liters and the spray rod is 12 meters long. Among the series of agricultural sprayers, it is a high-power and high-efficiency product, which can be widely used for the prevention and control of diseases, pests and weeds on food crops, vegetables and economic crops such as shrubs, as well as for large-scale health and epidemic prevention spraying.

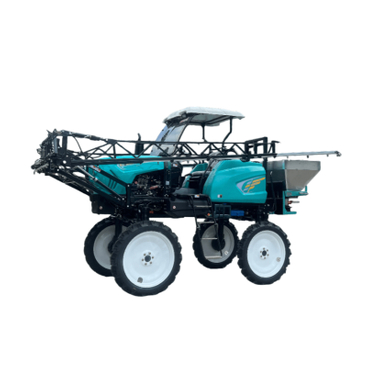

The 3WPZ-800 self-propelled sprayer is equipped with a 36.8kW (50 horsepower) four-cylinder diesel engine. 1080*120mm pneumatic rubber tire with a track length of 1.56m and a ground clearance of 1.06m; Four-wheel drive, four-wheel steering; The volume of the medicine box is 800 liters and the length of the spray rod is 12 meters. Among the series of agricultural sprayers, it is a high-power and high-efficiency product, which can be widely used for the prevention and control of diseases, pests and weeds on food crops, vegetables and economic crops such as shrubs, as well as for large-scale health and epidemic prevention spraying.

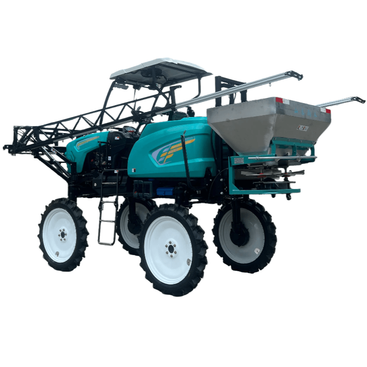

The 3WPZ-800C self-propelled sprayer is equipped with a 36.8KW (50 horsepower) diesel engine. 12-meter spray rod, 800L medicine tank volume; Inflatable wheels with a diameter of 1.08 meters, a track length of 1.8 meters, and a ground clearance of 1.06 meters. Four steering modes: four-wheel drive, four-wheel, two-wheel, and diagonal. The overall weight of the machine is 1800 kilograms. Among the series of agricultural sprayers, it is a high-power and high-efficiency product, which can be widely used for the prevention and control of diseases, pests and weeds on food crops, vegetables and economic crops such as shrubs, as well as for large-scale health and epidemic prevention spraying.

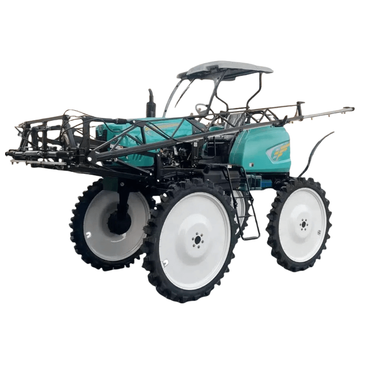

The 3WPZ-800D self-propelled sprayer is equipped with a 36.8KW (50 horsepower) diesel engine. 1.8-meter fixed bridge, track length 1.76m, wheelbase 2.155m; The overall weight of the machine is 2,200 kilograms. Four-wheel drive, four-wheel/two-wheel steering mode; Ground clearance :1.13 meters; Among this series of self-propelled sprayers, it is a product with widened wheelbase, extended wheelbase and increased ground clearance. It can adapt to the spraying operations for disease, pest and weed control of food crops, vegetables and shrubs with wider plant spacing and row spacing and higher crop height.
