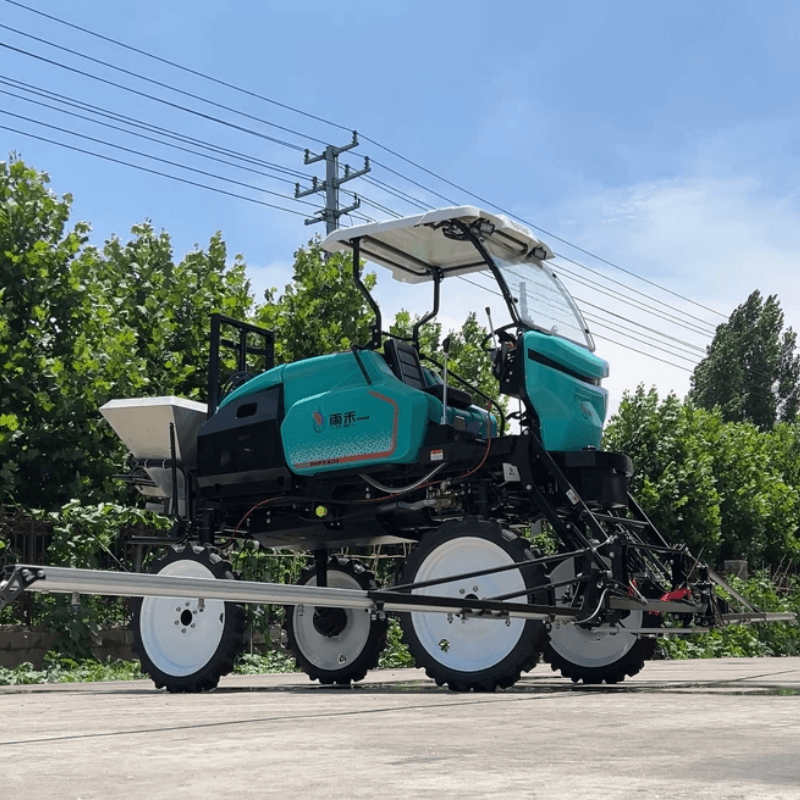

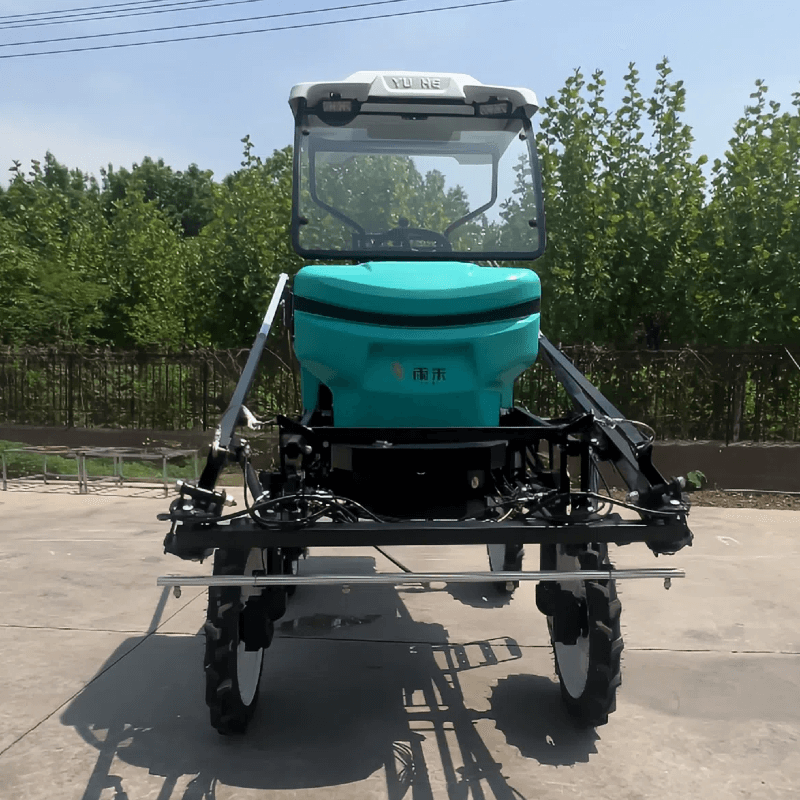

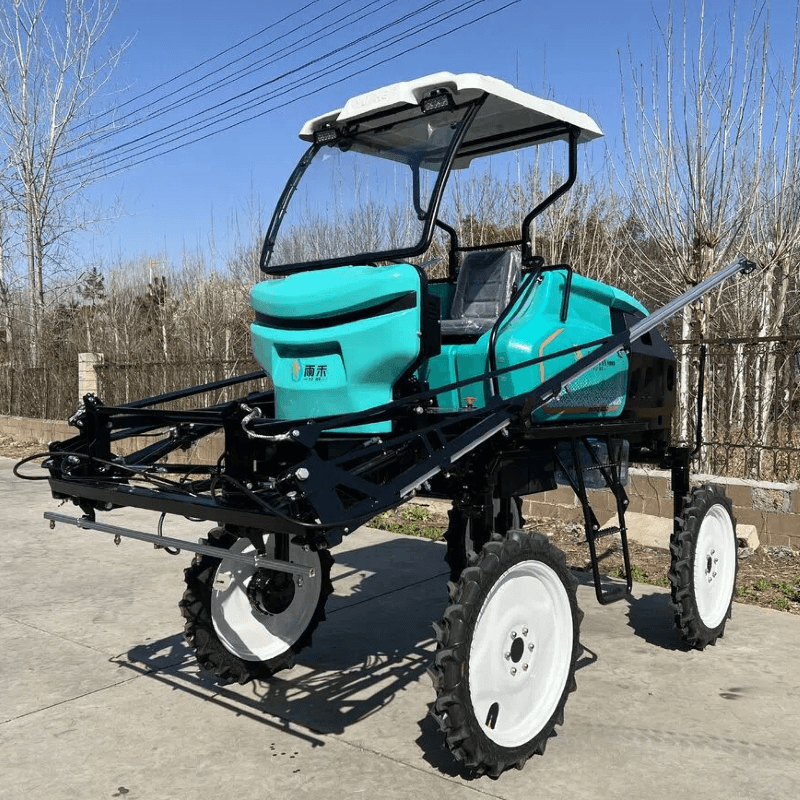

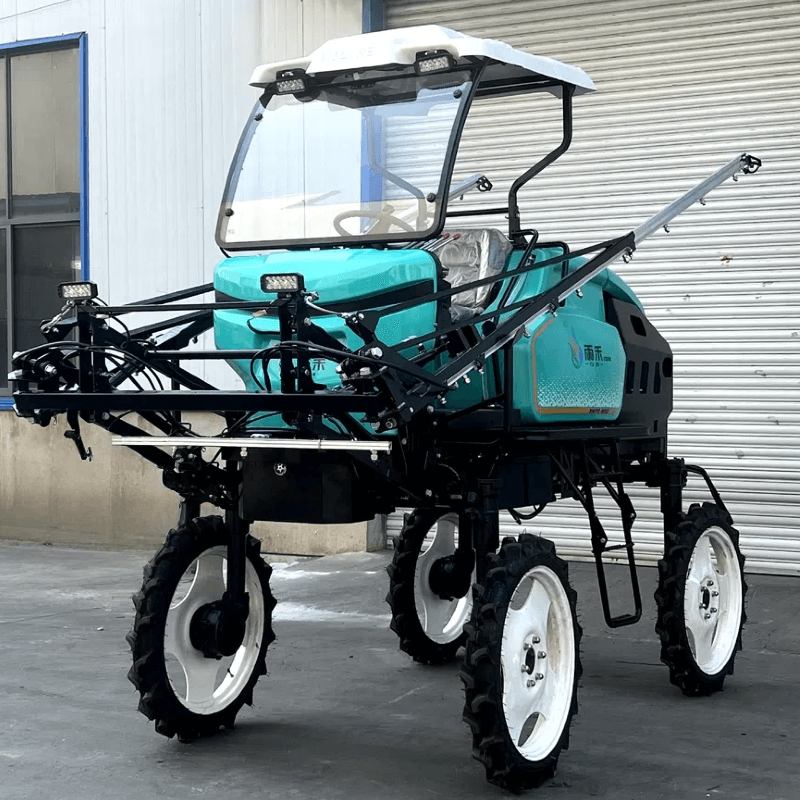

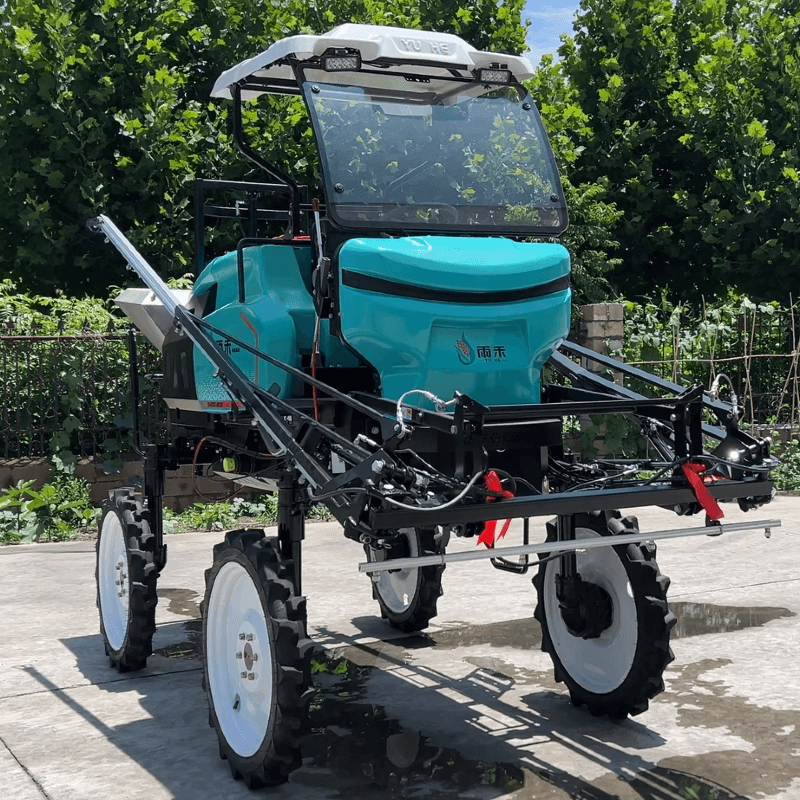

1. This self-propelled sprayer is equipped with a 14.7KW single-cylinder diesel engine, which has a large torque and can meet the driving and operation requirements in dry land, paddy fields, sloping land and other environments.
2. It has a fuel consumption of 1.5 to 2 liters per hour, featuring low fuel consumption. It can be transferred over long distances and supports large-scale operations.

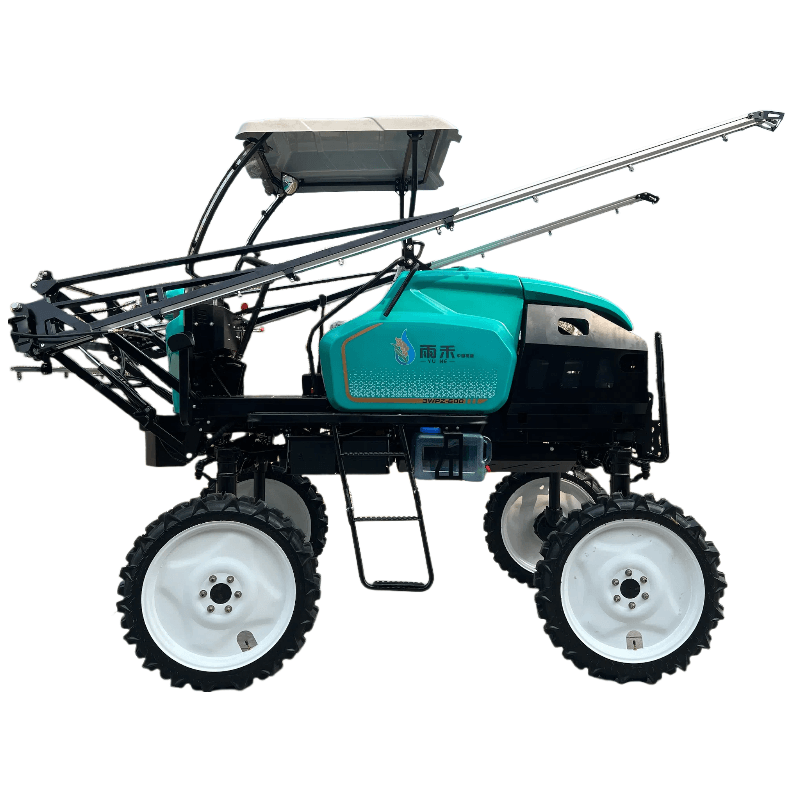

3. The 600L medicine box adopts a sunken design with the center of gravity shifted downward to ensure operational safety. The engine is rear-mounted, the medicine tank is middle-mounted, and the driver's seat is enclosed at the front end of the medicine tank. Compared with the suspended sprayer, it has a more compact structure and is flexible and convenient to operate.
4. It adopts aluminum alloy spray rods, 304 stainless steel nozzle bodies and anti-drip filter screens. The spraying system has high corrosion resistance and strength, and is safer and more durable than telescopic sprayers.
Compared with tractor sprayers, it features 4-wheel drive and 4-wheel steering, reducing the damage caused by tires to crops and resulting in a lower rate of seedling rolling. The rubber content of pneumatic tires is over 48%, and they have excellent wear resistance.
6. Type of spray rod lifting mechanism: Hydraulic lifting; Spray rod folding mechanism type: Hydraulic folding. The operation is convenient and flexible.
1. Weeding, pest and disease control, and foliar fertilizer spraying for wheat cultivation.
2. Spraying operations of herbicides, insecticides, fungicides and other agents during the rice cultivation process; The sowing of granular fertilizers.
3. Weeding before and after the emergence of corn seedlings, and spraying of pesticides in the middle and early growth stages.
4. Pest and disease control and foliar fertilizer spraying operations for large-scale cultivation of soybeans, cotton, vegetables, etc.
5. Spraying of hygiene and epidemic prevention disinfectants in public places.
1. According to the refueling standards: Add diesel to the diesel tank, pure water to the radiator, and diesel engine oil to the engine.
2. According to the dilution standard of the medicine, add the medicine to the mixer and pour clean water into the medicine tank to ensure uniform mixing.
3. Turn on the power, press the accelerator key clockwise, gently step on the accelerator, start in low gear 1, and gradually accelerate to high gear to move forward.
4. Pull the handle for lifting and extending the spray rod to adjust its height to 500mm from the top of the crop.
5. Step on the clutch, push the pump clutch handle to the engaged position, increase the throttle to speed up the operation of the drug pump, and rotate the pressure regulating handle clockwise to adjust the water pressure to 0.5 mpa.
