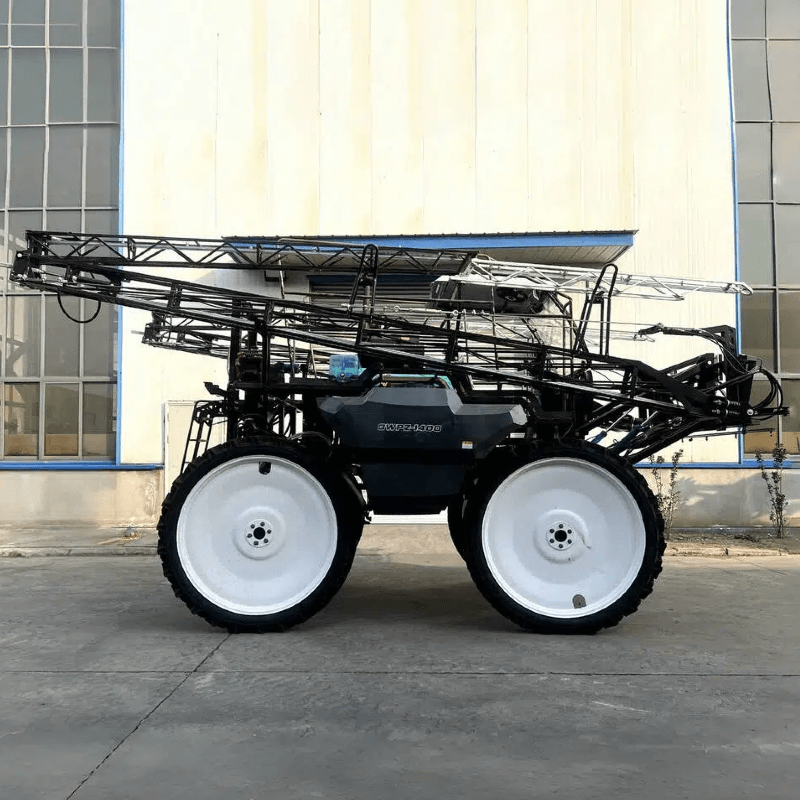

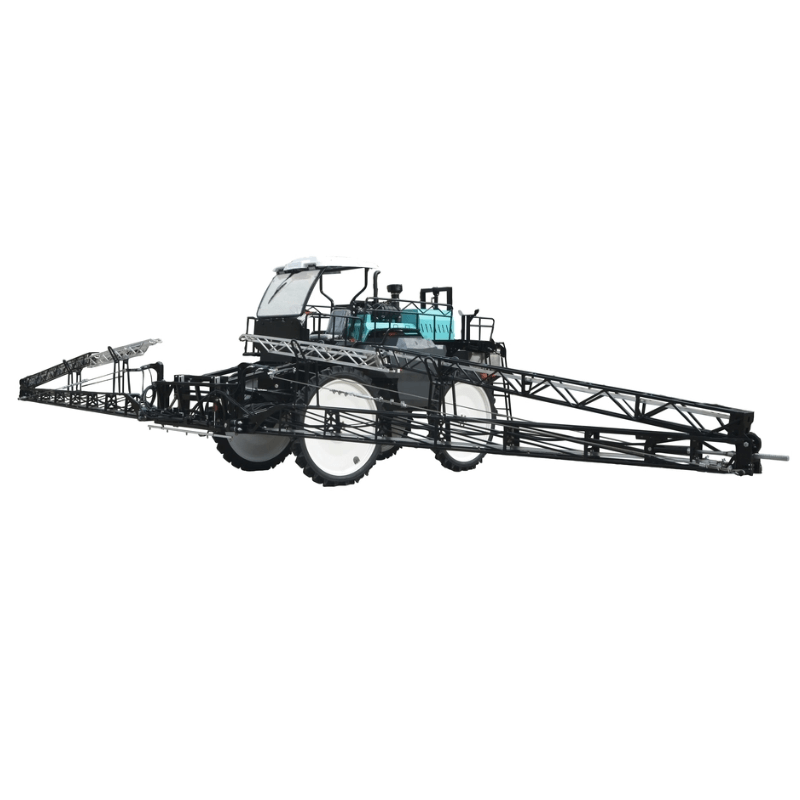

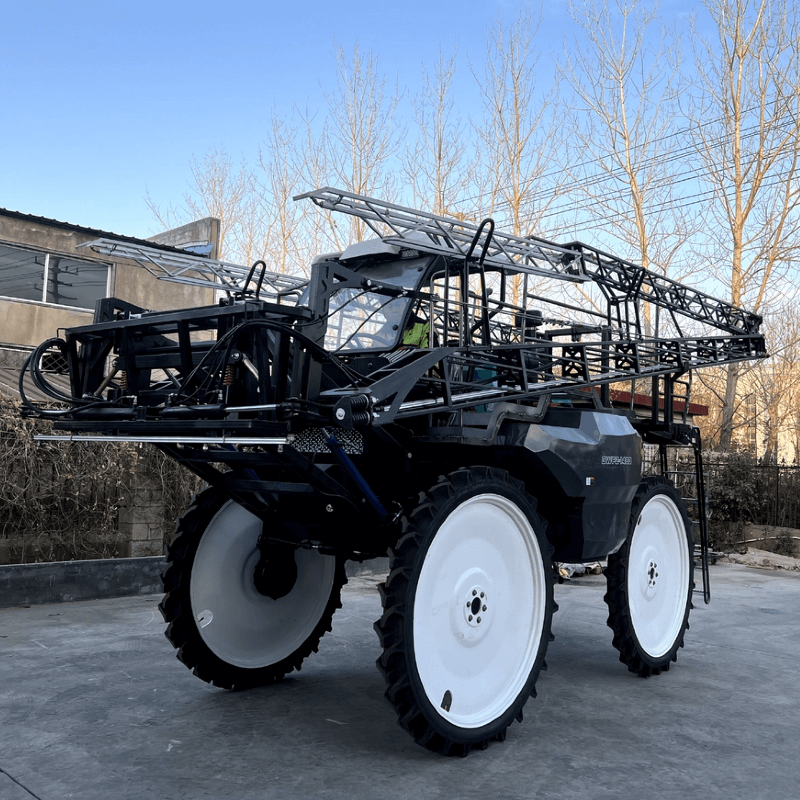

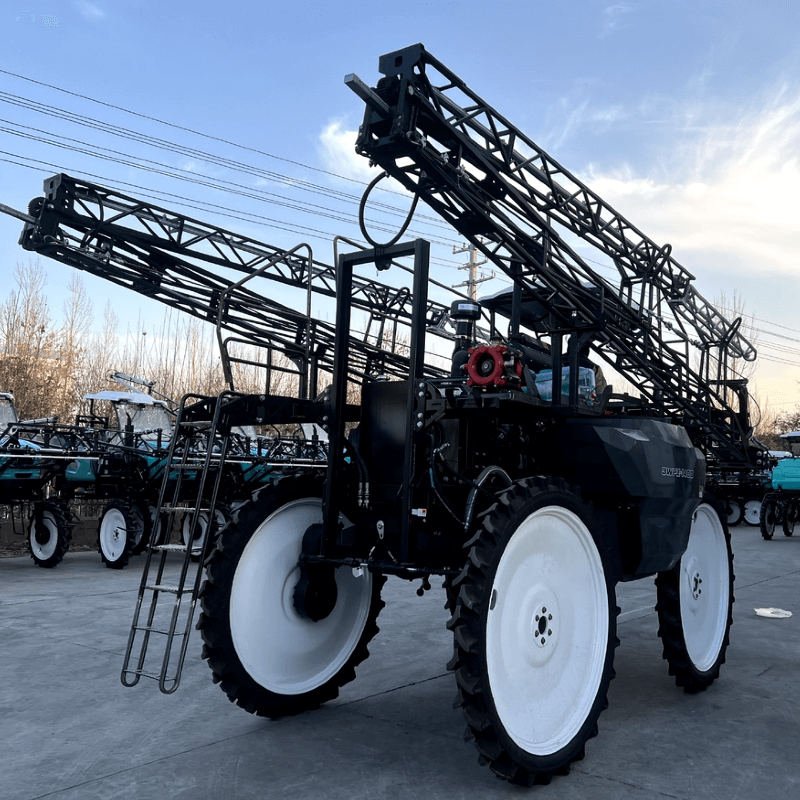

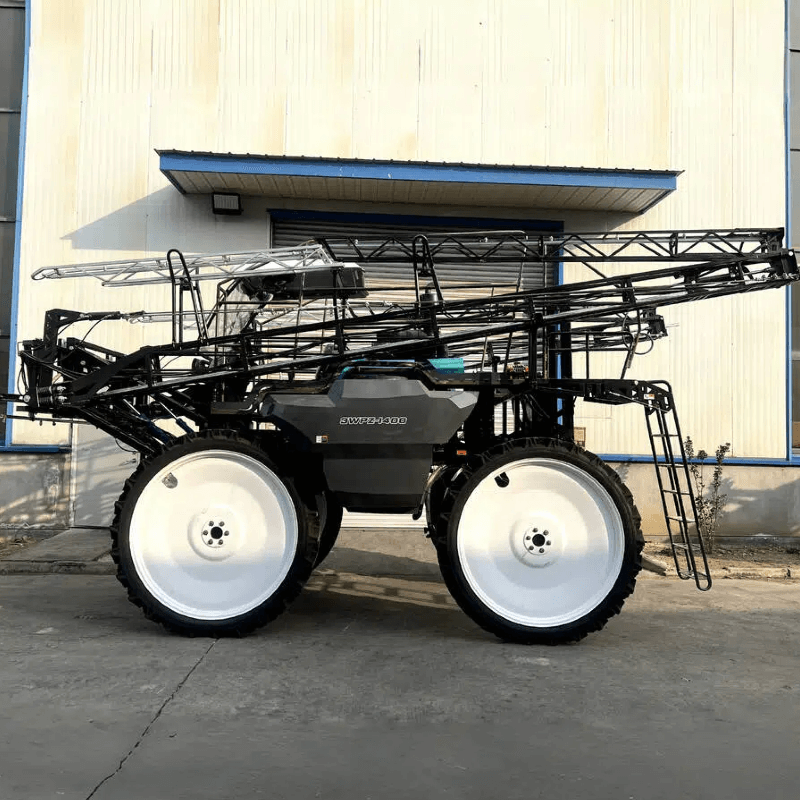

The 3WPZ-1400A self-propelled sprayer boasts a durable construction built to withstand the rigors of daily farm use. Its power system centers on a reliable diesel engine, chosen for its ability to deliver consistent performance in demanding conditions. The walking system features heavy-duty components, including a specialized gear bridge and transmission, designed to provide the torque needed for challenging terrains. The four-wheel drive and four-wheel steering systems work in harmony to deliver responsive handling, ensuring the sprayer moves with precision even in tight spaces. The spray system utilizes high-grade materials, with an aluminum boom that balances durability and lightness, and a diaphragm pump that maintains steady pressure for uniform spraying. The cab is designed with operator comfort in mind, featuring adjustable controls and a spacious layout that reduces fatigue during extended shifts. Every component, from the tires to the nozzles, is selected for reliability, making this agricultural sprayer a long-term investment for serious farmers.
| Project name | Specification parameters | Item name | Specification parameters | ||
| Overall size | Overall dimensions (mm) | 6260*2500*3170 | Powertrain | Engine power (kw/r/min) | 76/2200 |
| Ground clearance (mm) | 920 | Battery capacity | 2*24v 2*45Ah | ||
| Spray length (mm) | 20000 | Engine type: | 100HP- Yunnei cylinder water cooled engine | ||
| Spray rod lift (mm) | 450-1600 | Walking system | Weight of the whole machine (Kg) | 3000 | |
| Wheel base (mm) | 1850/adjustable | Drive | Four-wheel drive | ||
| Wheelbase (mm) | 2500 | Steering | Four-wheel steering | ||
| Cab | Adjustable | Gearbox | Forward gear 3, backward gear 2 with high and low speed transmission | ||
| Spray system | Spray rod position | Front | Brakes | Drum Brake | |
| Spray rod material | Aluminium | Tires | Pneumatic rubber | ||
| Number of spray bodies | 51 | Tire diameter (mm) | 1600 | ||
| Spray rod type | Hydraulic lift | Tire width (mm) | 140 | ||
| Medicine cabinet Volume (L) | 1400 | Turning radius (mm) | 4300 | ||
| Working pressure (Mpa) | 0-2.5 | Drive mode | Four-wheel drive | ||
| Drug pump flow (L/min) | 160 | Walking speed (km/h) | <28km/h | ||
| Medicated liquid stirring | Jet Flow+Back Flow | Work benefit | Application efficiency | 6-10hec/day | |
| Medicine pump construction | Diaphragm pump | Topdressing efficiency | 6-10hec/day | ||
| Medicine pump drive | Hydraulic motor | Fuel consumption (L/h) | 20 | ||
The 3WPZ-1400A is a premium self-propelled sprayer designed to redefine efficiency in modern agriculture. As a flagship agricultural sprayer, it combines robust performance with exceptional adaptability, making it an indispensable tool for farmers managing large-scale crop protection. Engineered with four-wheel drive and four-wheel steering, this sprayer excels in navigating the most challenging field conditions, from uneven plots to waterlogged areas. Its focus on power and stability positions it as a top-tier high-power sprayer that delivers consistent results for both grain and cash crops. Beyond spraying, its compatibility with a fertilizer spreader adds multi-functional value, streamlining farm operations and reducing the need for multiple machines. Whether you’re targeting pests, weeds, or nutrient distribution, this dual-purpose agricultural tool is built to meet the demands of intensive farming.
At the heart of this self-propelled sprayer lies a reliable four-cylinder water-cooled diesel engine, engineered to deliver steady power for prolonged operations. The integration of four-wheel drive ensures superior traction, allowing the machine to navigate through soft or muddy terrain without compromising speed or stability. Paired with four-wheel steering, it offers exceptional maneuverability, making tight turns and precise adjustments effortless—even in dense crop fields. This combination of power and agility eliminates the frustration of stuck or cumbersome equipment, ensuring that every inch of the farm is covered efficiently.

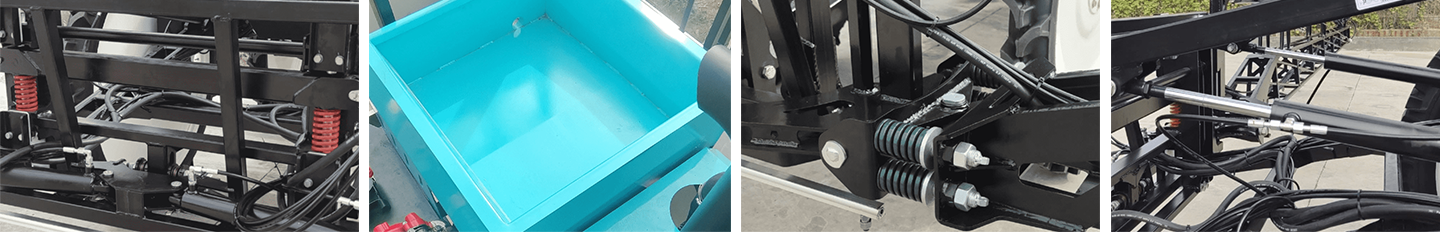

The agricultural sprayer features a thoughtfully crafted body with a low center of gravity, achieved through its uniquely designed sunken medicine tanks. These tanks are interconnected to maintain optimal balance, reducing the risk of tipping even when navigating sloped fields or sharp turns. The front-mounted cab provides the operator with an unobstructed view of the crops and terrain, enabling precise control and minimizing crop damage. Every aspect of the design prioritizes safety, from the stable frame to the intuitive control layout, making long working hours more comfortable and secure.

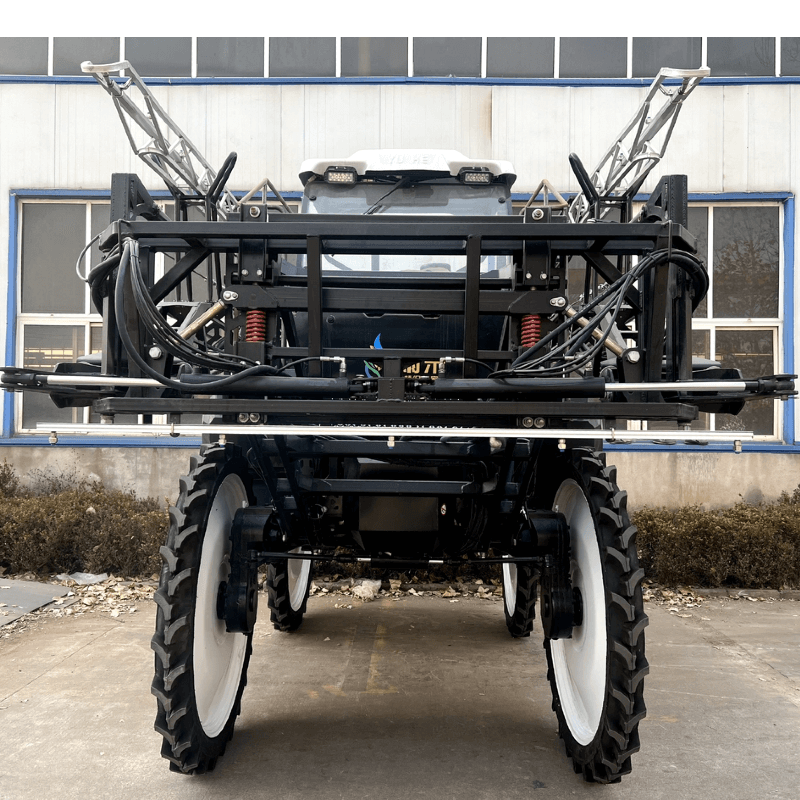

Equipped with a high-quality hydraulic lift boom, the sprayer adapts seamlessly to different crop heights and field requirements. The boom can be adjusted while in motion, allowing the operator to avoid obstacles and ensure uniform coverage across varying crop densities. Attached to the boom are durable stainless steel nozzles that deliver fine, consistent atomization, ensuring that pesticides and nutrients adhere evenly to plant surfaces. The liquid mixing system combines jet and reflux stirring, preventing sedimentation and maintaining a homogeneous spray mixture throughout the operation—critical for effective pest control and weed management.
What sets this crop sprayer apart is its dual-purpose design, which integrates pesticide spraying with granular fertilizer spreading. By attaching the optional centrifugal spreader to the rear, farmers can switch between tasks without changing equipment, saving valuable time and labor. The spreading width aligns perfectly with the spraying width, ensuring that crops receive consistent coverage without overlap or gaps. This versatility makes the sprayer suitable for full-cycle agricultural care, from pre-sowing soil treatment to late-stage crop maintenance, solidifying its role as a comprehensive agricultural tool.

This self-propelled sprayer is ideally suited for protecting grain crops such as wheat and rice, as well as cash crops like vegetables and shrubs. Its powerful spraying system ensures effective control of diseases, pests, and weeds, promoting healthy crop growth and maximizing yields. The uniform atomization ensures that treatments reach every part of the plant, from the roots to the foliage, making it effective for both preventive and curative applications. Whether combating fungal infections in rice paddies or insect infestations in vegetable plots, the sprayer delivers consistent, reliable results.
Designed to thrive in challenging environments, the high-power sprayer excels in muddy, uneven, and sloped fields where traditional equipment may struggle. Its specialized tires and robust suspension system provide excellent traction, allowing it to navigate wet paddy fields and rough terrain without getting stuck or damaging crops. This adaptability makes it a valuable tool for farms with diverse landscapes, eliminating the need to invest in multiple machines for different field conditions. Farmers can confidently use the sprayer across their entire property, knowing it will perform consistently regardless of the terrain.
Beyond mid and late-stage crop protection, the sprayer is effective for pre-sowing soil treatment and seedling-stage pest control. It can apply herbicides and soil amendments before planting, creating an optimal growing environment for seeds. During the seedling stage, when crops are most vulnerable, the sprayer’s precise application ensures young plants are protected without being damaged. The adjustable boom height allows for gentle application over delicate seedlings, while the uniform atomization prevents runoff and ensures treatments are absorbed effectively.
The integration of fertilizer spreading functionality makes this sprayer a one-stop solution for comprehensive crop care. After spraying pesticides, farmers can easily attach the spreader to distribute granular fertilizers, ensuring crops receive essential nutrients at the right time. This seamless transition between tasks streamlines farm operations, saving time and labor while ensuring crops receive consistent care throughout the growing season. Whether you’re managing a small family farm or a large commercial operation, this dual-purpose feature enhances productivity and reduces operational costs.
The four-wheel drive system distributes power evenly to all four tires, providing superior traction in muddy and slippery conditions. This ensures the self-propelled sprayer maintains forward momentum without getting stuck, allowing farmers to complete operations even in wet fields. The system works with the sprayer’s robust tires to create a stable base, preventing slippage and ensuring consistent spraying across challenging terrain.
The fertilizer spreader is designed for hassle-free attachment, with a user-friendly mounting system that requires no special tools. Farmers can connect the spreader in minutes, enabling seamless switching between spraying and spreading tasks. It integrates perfectly with the sprayer’s design, ensuring the spreading width matches the spraying width for uniform coverage.
Inconsistent pressure often relates to the diaphragm pump or nozzle maintenance. First, check the pump’s valves and diaphragms for wear or debris, as these can affect pressure regulation. Clean or replace damaged components as needed. Additionally, inspect the stainless steel nozzles for clogs—debris can restrict flow and cause uneven pressure. Regular maintenance of the spray system ensures the agricultural sprayer delivers consistent performance.
