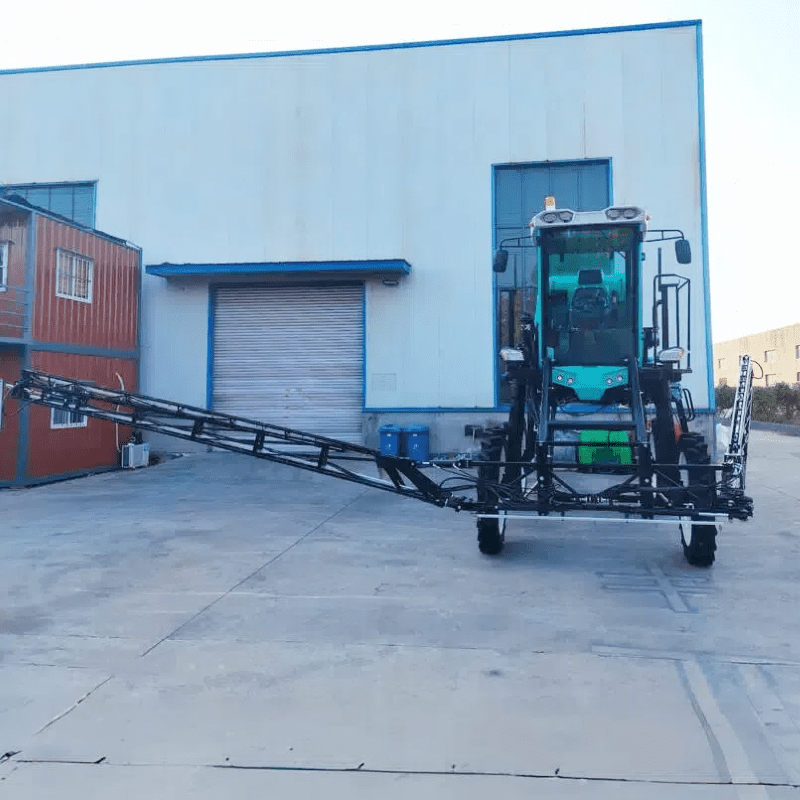

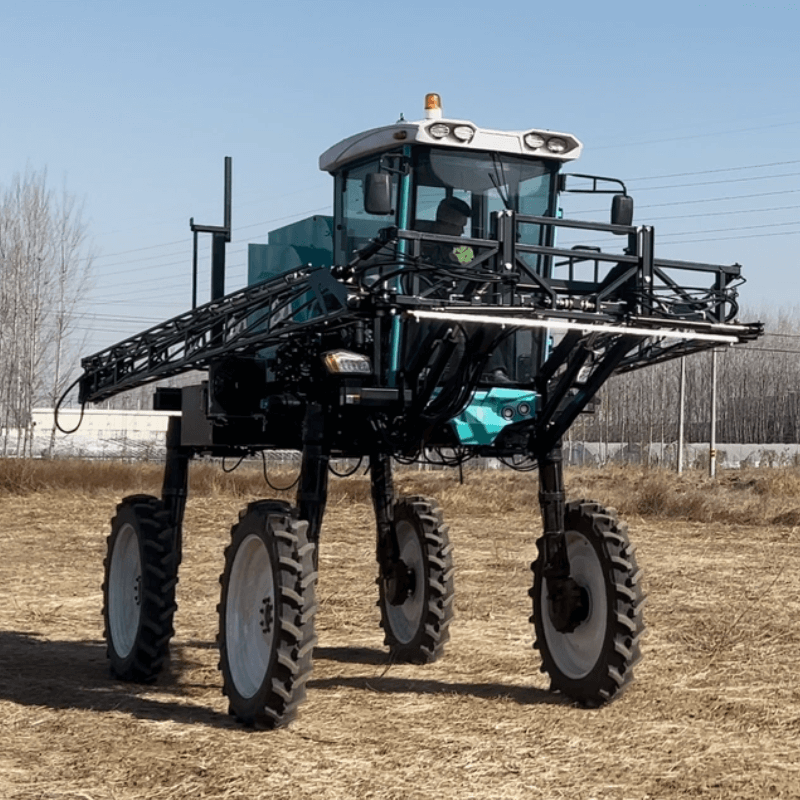

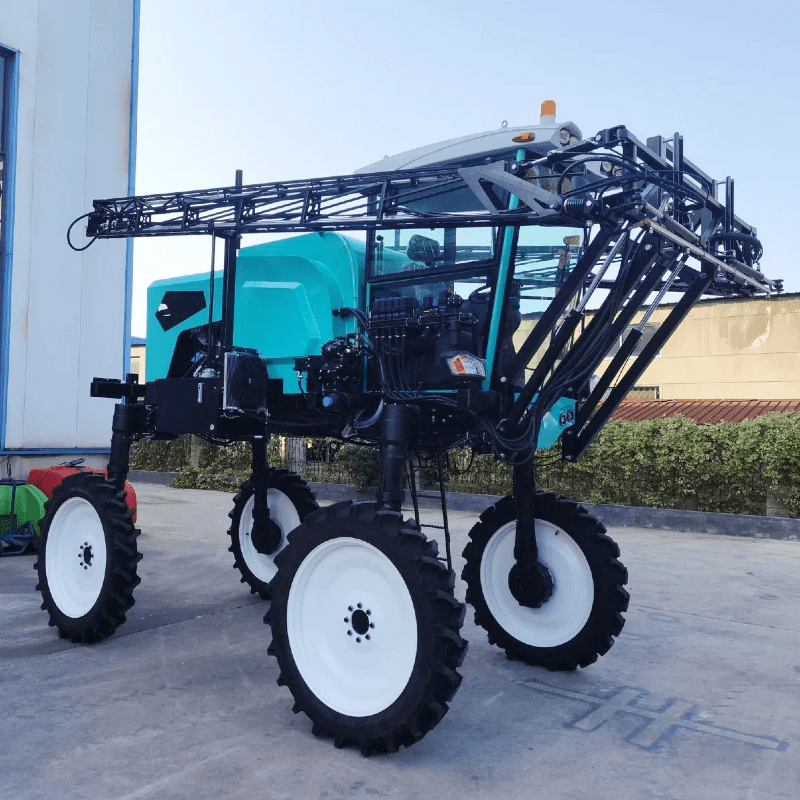

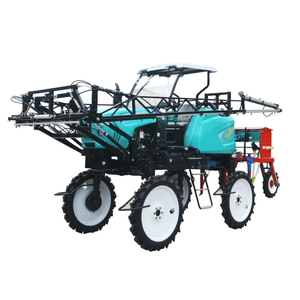

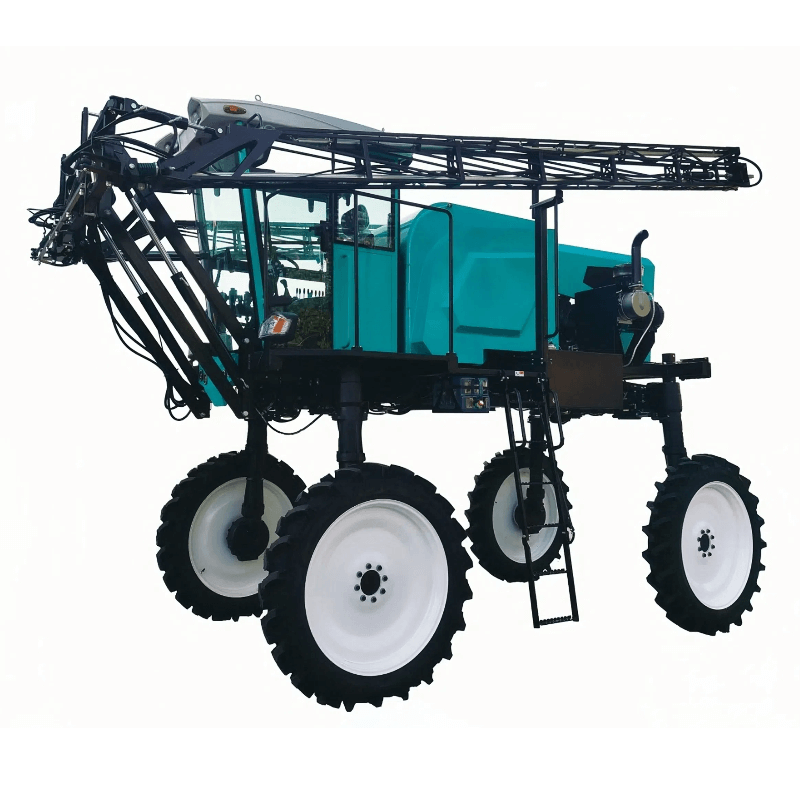

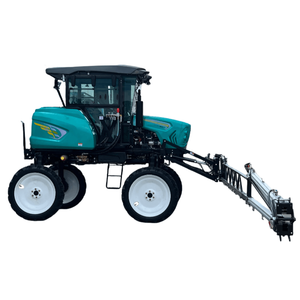

1. It is equipped with a 180L/min high-flow diaphragm pump, with a pressure adjustment range of 0.2-0.5MPa. The whole machine adopts a variable spray control system. The spray pressure changes with the speed, ensuring precise spraying and precise pesticide application. The efficiency of smaller and medium-sized self-propelled sprayers is higher.
2. It adopts the self-developed patented technology of stepless variable track adjustment mechanism, which has a small fit clearance and high wear resistance. It can freely switch between 2.2 and 2.6 meters. All four wheels are synchronized, and the shaking is small during acceleration and deceleration during driving and riding. It has higher agility and comfort than the traditional telescopic spray.

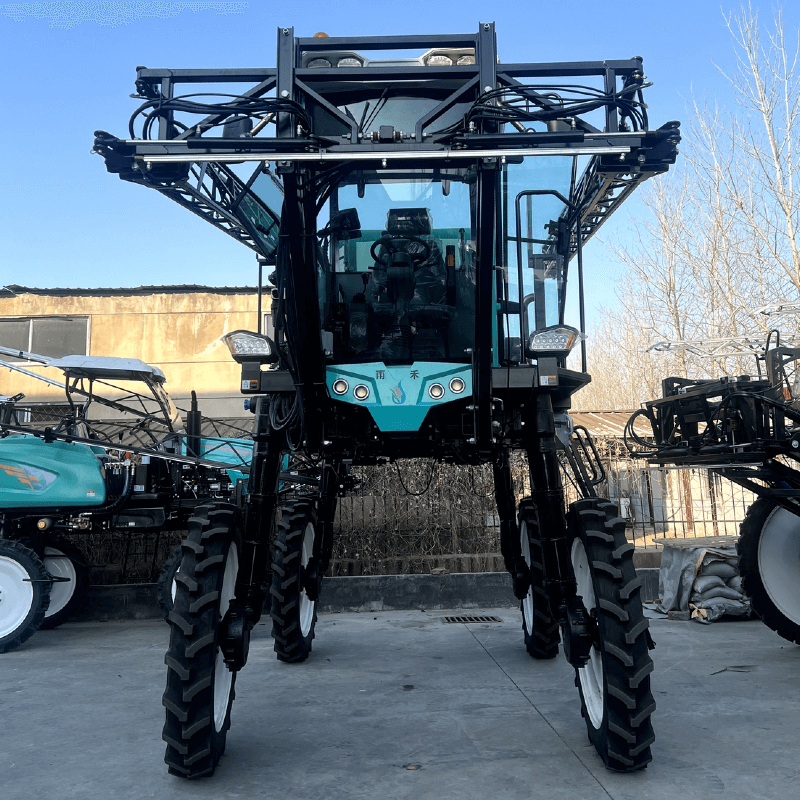

3. Independently developed drive axles can be selected with three ground clearances of 1.2/1.5/1.8m according to the different heights of different crops. It can ensure the full-process prevention and control operations for the growth of tall crops.

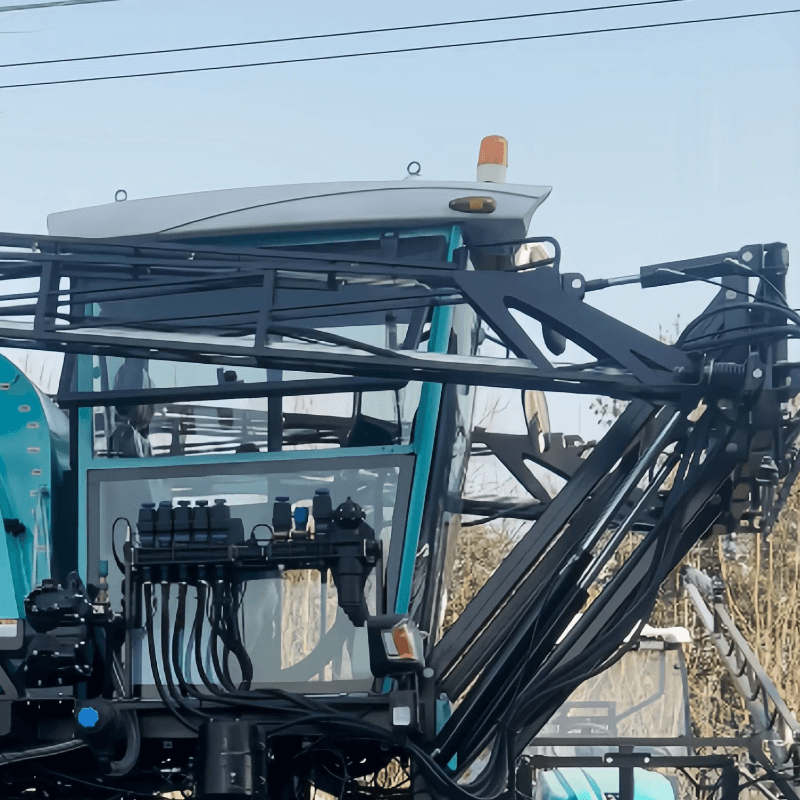

4. The spray rod is 20 meters long and features a bidirectional folding shock-absorbing spray rod to reduce operational impacts. The spray rods of the entire vehicle are leveled with a transverse disc in the middle, which is simple and reliable.

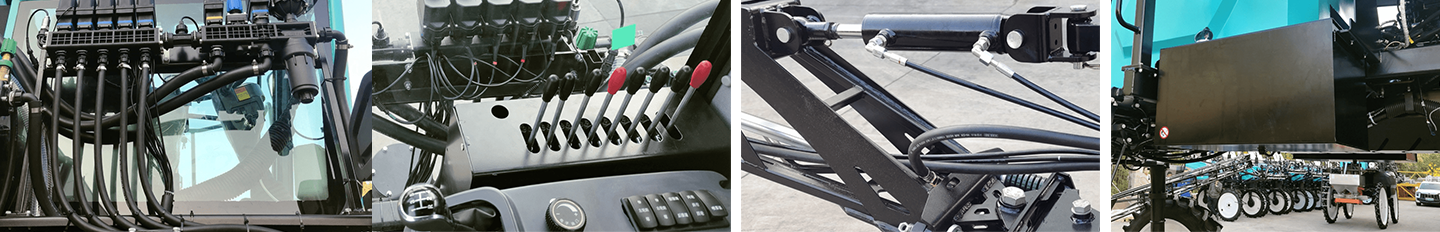

5. Ultra-high configuration: Single-cylinder double-folding ladder, super-large liquid filter, self-absorbing water design, elastic adjustable seat, air-conditioned cab, super-large fuel tank, etc., enhancing the driving and handling experience.
6. The overall weight distribution of the machine is meticulously designed. The front-mounted cab, mid-mounted medicine tank and rear-mounted engine should be sunken towards the middle. Ensure that the center of gravity of the vehicle remains balanced whether it is empty, fully loaded or during the spraying process.
As an agricultural sprayer, it is mainly used for the full-process pesticide application and control of diseases, pests and weeds on medium and short crops under 1.3 meters such as rice, wheat, soybeans and peanuts, as well as the early and mid-stage pesticide application on tall crops like corn and sorghum. It can also be used for large-scale soil treatment before sowing, weed control and pest and weed control during the seedling stage on vegetables, fruits, Chinese herbal medicines, forage grasses and garden flowers.
This product is dual-purpose. It can be used for spraying pesticides at the front and spreading fertilizers at the back. The width for spraying pesticides is the same as that for spreading fertilizers, reducing the burden on seedlings. Compared with tractor sprayers, it is more convenient and multi-functional
1. According to the standard: Add diesel to the diesel tank; Check that the hydraulic oil level is not lower than two-thirds of the oil window position. Check the antifreeze in the radiator. Add the liquid medicine in accordance with the standard for drug mixing.
2. Switch the power switch to the "ON" position, step on the clutch with your left foot, rotate it clockwise to start the engine, and twist the speed control knob. Select the forward or backward button and step on the accelerator to accelerate.
3. Pull the spray rod control handle on the machine panel, lift the left and right spray rods according to the support of the front spray rod, extend one section of the left and right spray rods, extend the second section of the spray rods, and adjust the overall height of the spray rods.
4. Pull the clutch handle of the pesticide pump on the instrument panel, turn on the power switch of the variable pesticide application system, operate it according to the pesticide application operation manual, observe the atomization of the nozzle, and start working by adding the gas valve.
